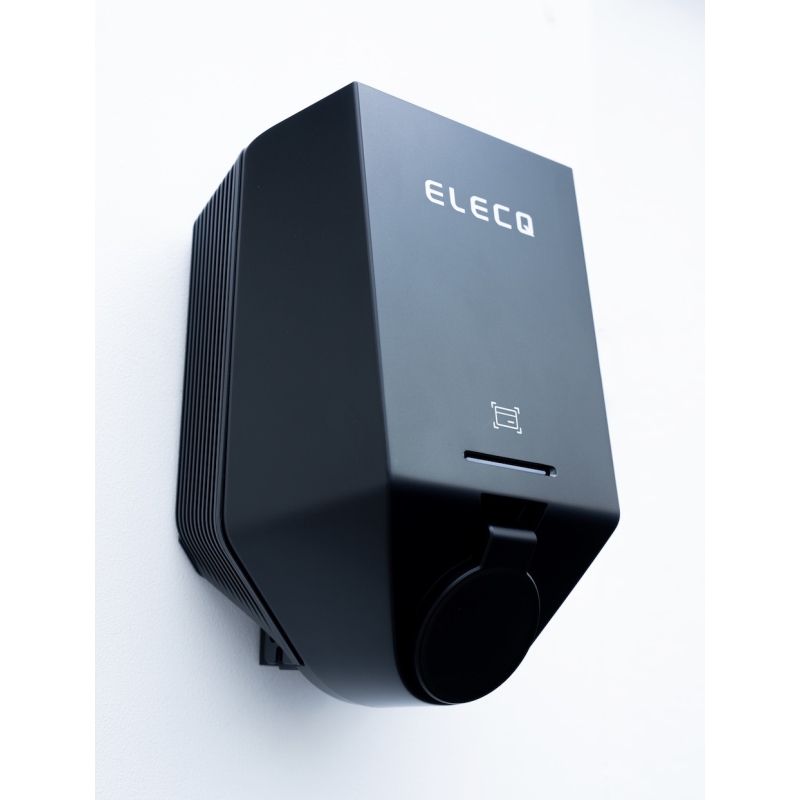

Elecq 7.4kw 4G Home Wallbox Monophasé

Specifications

Technical

Electrical

• Charging power: Single phase up to 7.4kW/32A; Three phase up to 22kW/32A

• Number of phases: 1 or 3 (fully dynamic)

• Voltage: Single phase: 230V±10%; Three phase: 400V±10%

• Connector type: IEC 62196 type 2 socket or socket with shutter or 5m cable

• Grid frequency: 50Hz

• Power grid: TN, IT, TT

• Meter: Built-in energy meter (±1%)

• Load management: Up to 5 chargers on the same circuit

• Automatic adjustment of charging speed based on available current (Elecq Power Monitor required)

• Automatic charging with solar generation (Elecq Power Monitor required)

Connectivity

• WIFI 2.4GHz & 5GHz, 802.11b/g/n/a/ac/ax

• Bluetooth

• Wi-Sun Sub-GHz

• RFID/NFC reader

• OCPP 1.6J and OCPP 2.0.1

• Cat4 LTE 4G with Built-in eSIM or standard SIM card (optional)

• Ethernet

• RS485

Interaction

• Elecq App

• LED Light strip showing the status of the charger

• Sound effects and voice prompt

General

• Dimension: 283 × 191 × 154mm

• Weight: 2.7kg

• Operating temperature: -40 ~ 55°C

• Storage temperature: -40 ~ 85°C

• Operating altitude: 2000m

Safety

Protection

• Integrated overload protection according to EN IEC 61851-1:2019

• Built-in RCD for ground fault protection (30 mA AC / 6 mA DC) according to IEC 62955

• Insulation class: I

• Overvoltage category III

• Degree of protection: IP65

• Impact resistance: IK10

• Temperature sensors in all main contacts and critical components

Theft Protection

• Anti-theft detection

• The charging cable can be locked permanently in the charger

• Padlock bracket for theft protection

Compliance

• IEC/EN 61851-1

• IEC/EN 61851-21-2

• IEC/EN 62955

• IEC 62196

• EN 301 908-1

• EN 301 908-13

• EN 300 328

• EN 300 330
